Bill of Materials Introduction
General

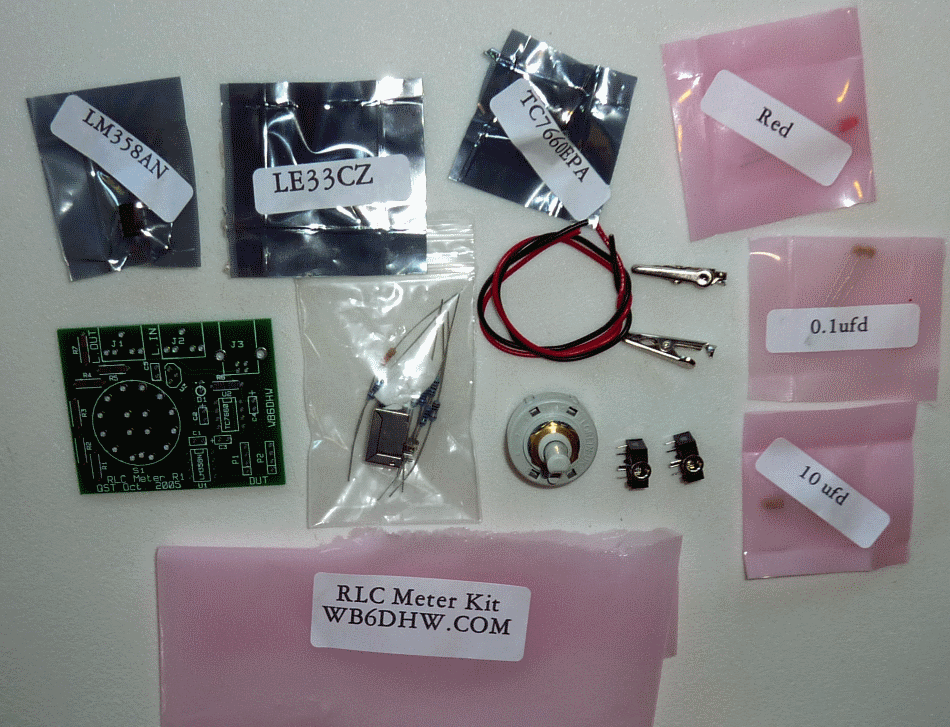

The kit comes in a single pouch, inside of which are neatly packaged components. Here are the contents of the main pouch:
The envelope with the 7 resistors also contains the USB jack (J3).
Before doing anythng else, you should inventory all of the parts. It is a good idea to identify each of the resistors using an ohmmeter - do not rely on color codes alone.
(go directly to build notes) (go directly to build notes)Bill of Materials
PC RLC Meter Component Inventory Summary
(resistor images and color codes courtesy of WIlfried, DL5SWB's R-Color Code program)
| Component | Value | Markings | Quantity |
|---|---|---|---|
| Capacitor-Ceramic | 100 nF(0,1 uF) | 104
 | 2 |
| Capacitor-tantalum | 10 uF | 106
 | 3 |
| connector-Cable | wire and alligator clips |
 | 2 |
| connector-Jack-RA | 3.5mm stereo jack - PCB mount (rt-angle) |
 | 2 |
| connector-Jack-RA | USB-B pcb jack (rt-angle) |
 | 1 |
| Diode-LED | red LED |
 | 1 |
| IC-DIP-8 | TC7660 charge Pump DC-DC Conv |
 | 1 |
| IC-DIP-8 | LM358N dual OpAmp 0-70 deg C | LM358N dual OpAmp 0-70 deg C
 | 1 |
| IC-TO-92 | LE33CZ 3.3V voltage regulator |
 | 1 |
| Resistor-1/4W | 10 ohm 1/4W 1% | br-blk-blk-gld-br
 | 1 |
| Resistor-1/4W | 100 ohm 1/4W 1% | br-blk-blk-blk-br
 | 1 |
| Resistor-1/4W | 330 1/4W 5% | ora-ora-brn-gld
 | 1 |
| Resistor-1/4W | 1 k 1/4W 1% | br-blk-blk-br-br
 | 1 |
| Resistor-1/4W | 10 k 1/4W 1% | brn-blk-blk-red-brn
 | 2 |
| Resistor-1/4W | 100 k 1/4W 1% | brn-blk-blk-orng-brn
 | 1 |
| Switch-2P6T | 2 pole six pos rotary switch |
 | 1 |
Component Designations by Stage
Click to see the listing of individual componet designations by stage (e.g., "R1 10 ohms in Local Oscillator Stage").
UnAssigned Components
| Check | Designation | Component | Marking | Category | Orientation | Notes | Circuit |
|---|
